Overview
Key Features & Benefits
- Multi-Purpose Applications: Cleans brewing tanks, pipelines, and filling systems; transfers acids, alkalis, and rinse water

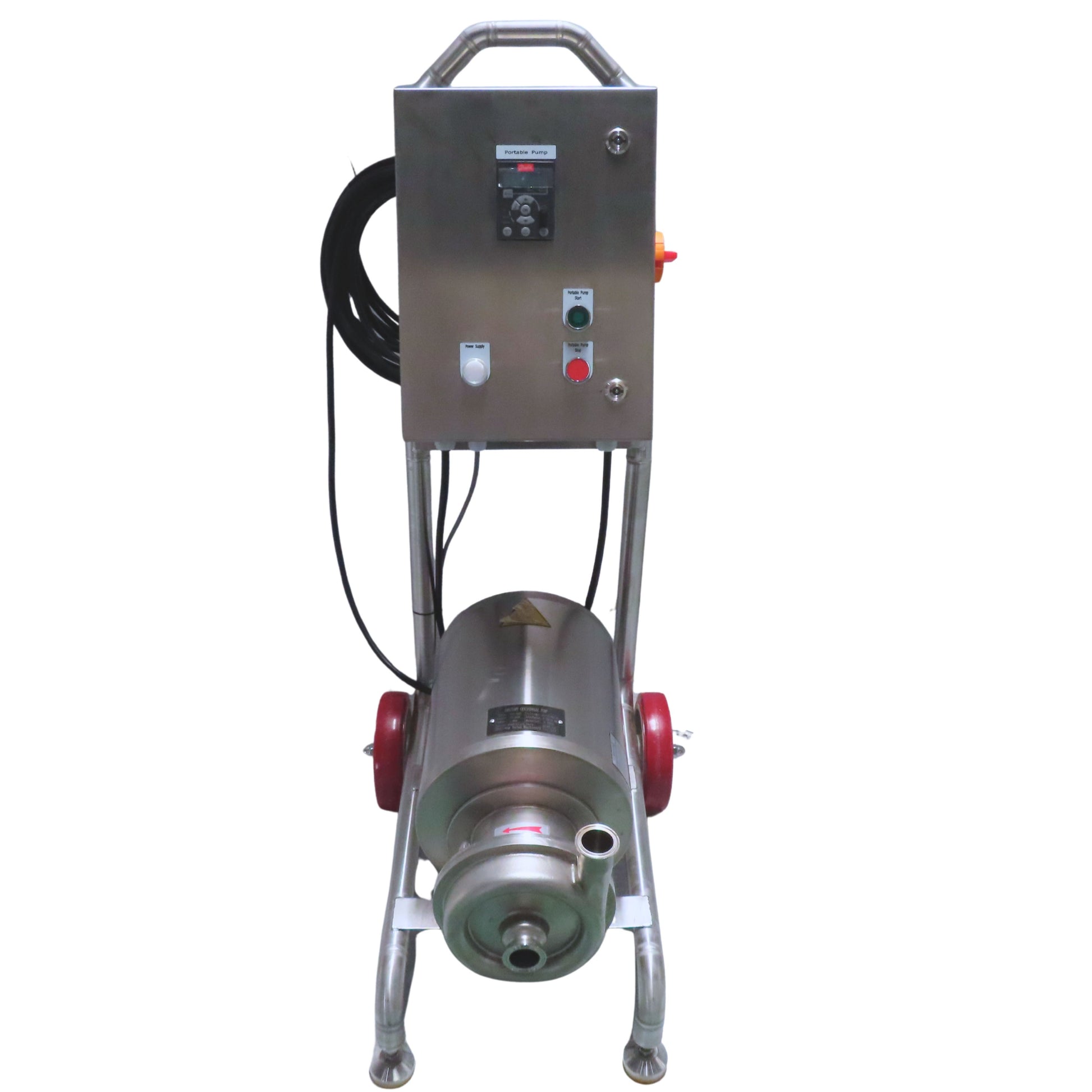

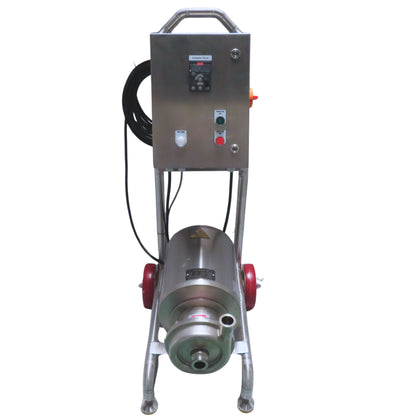

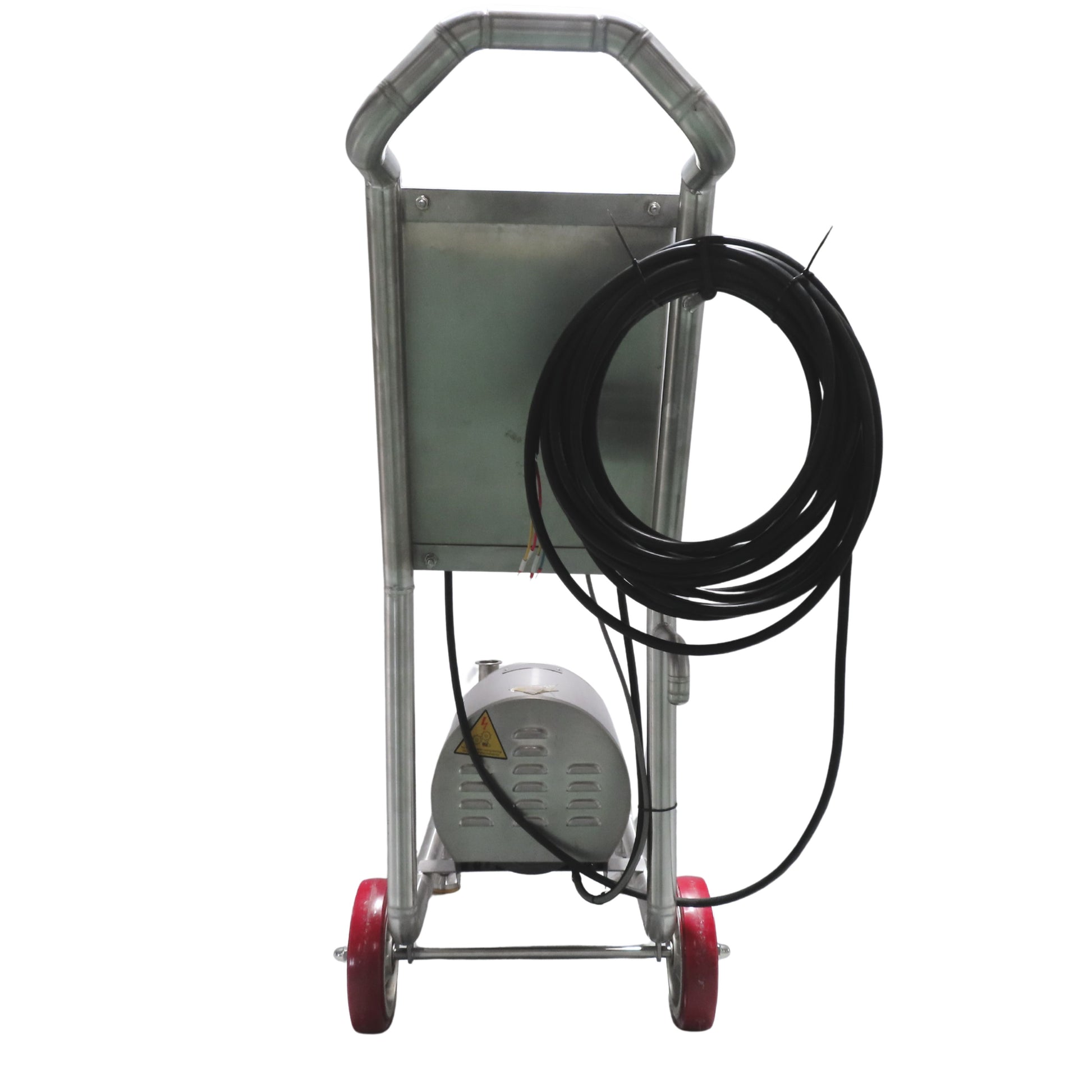

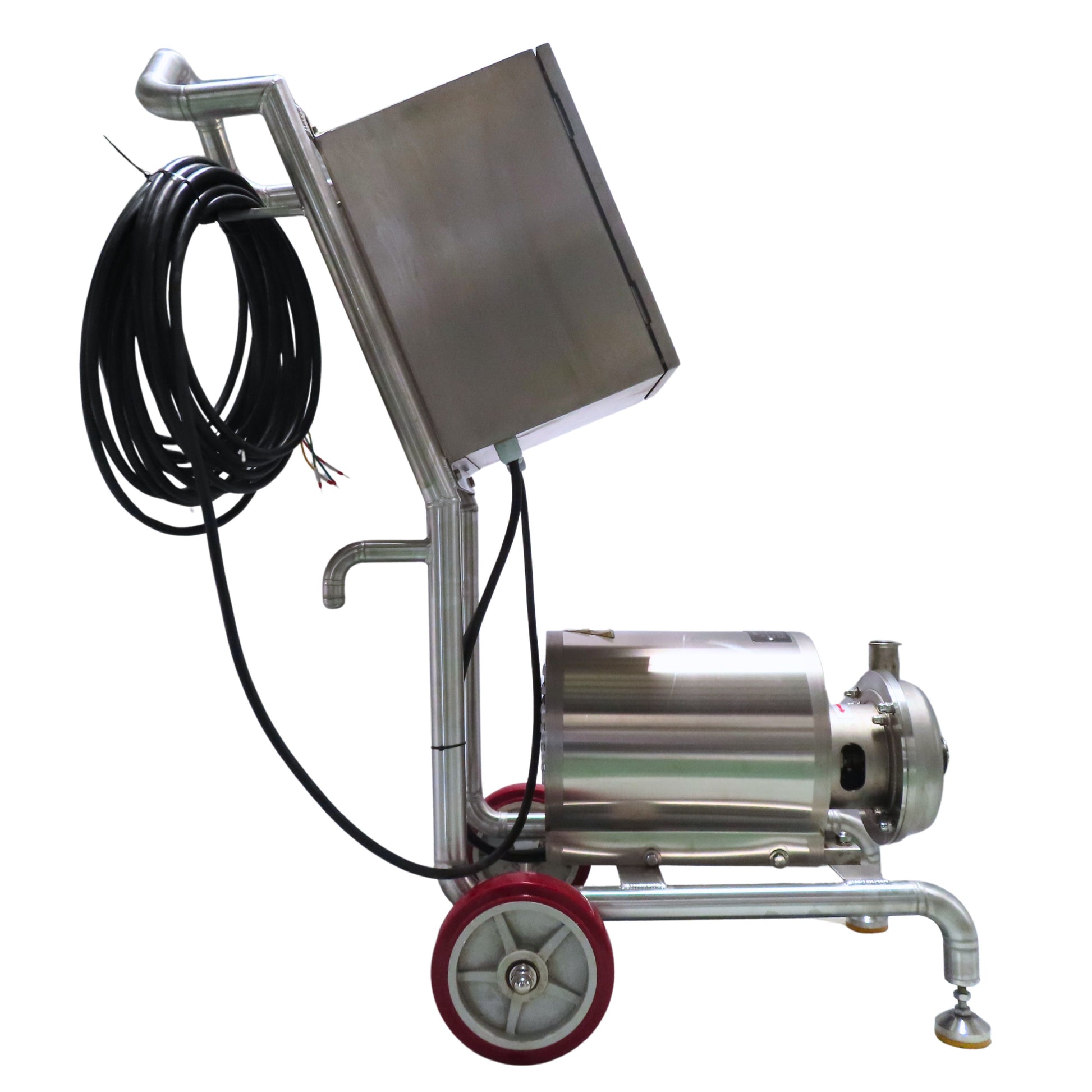

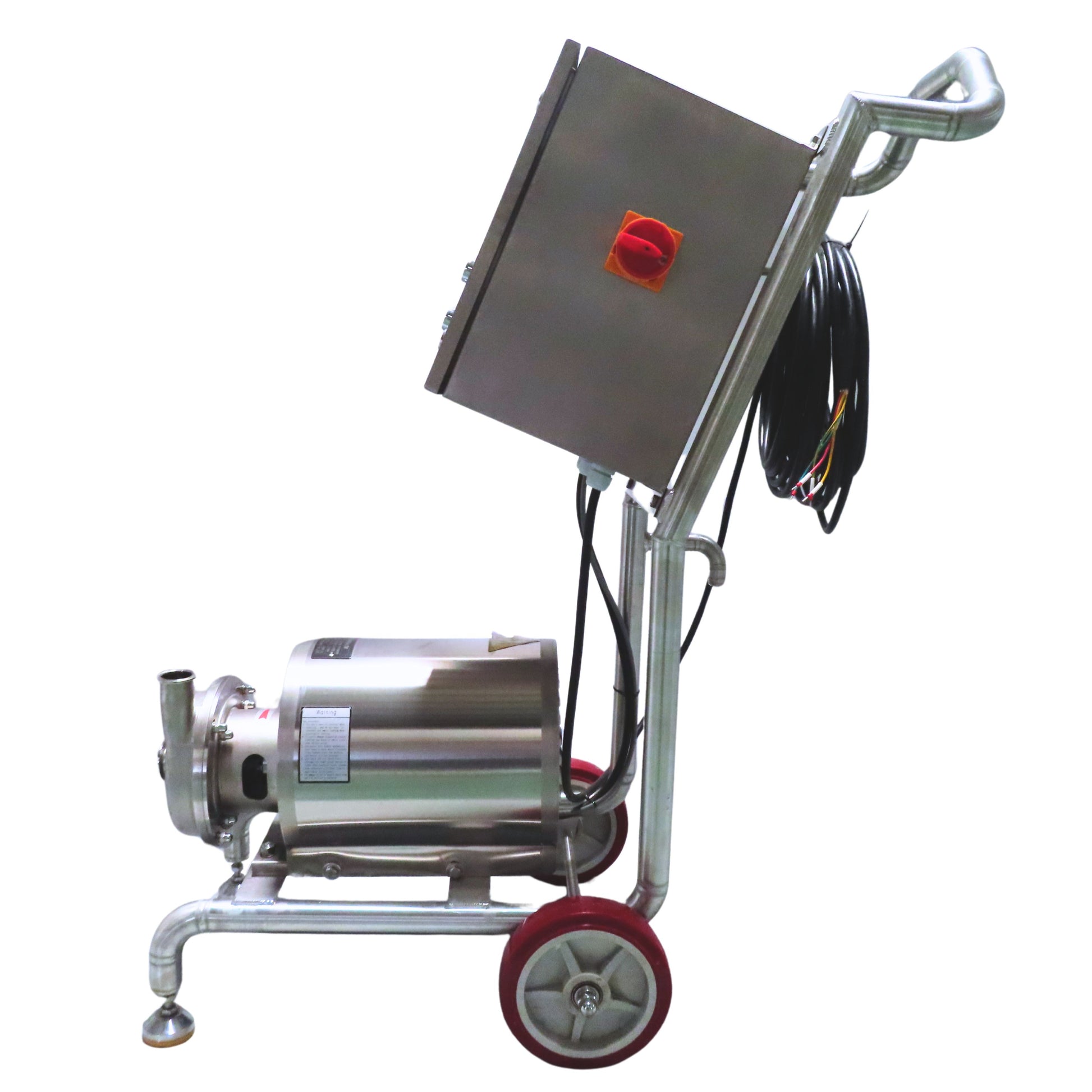

- Portable Design: Mounted on a 304 stainless steel trolley for easy movement
- Sanitary Pump: Food-grade stainless steel centrifugal pump with Tri-clamp connections
- Power Options: Available with fixed-speed or VFD control for adjustable flow
- Advanced Monitoring (Optional): Add-ons like flowmeter, pressure gauge, or explosion-proof motor
- Durable & Safe: Stainless steel motor cover and optional control box with overload protection
- Plug-and-Play: Comes with power cable and plug for quick setup
- Easy to Maintain: Designed for CIP use; mechanical seals are accessible for inspection and replacement
Technical
Technical Parameters
| Item | Specification |
|---|---|
| Flow rate | 5m³/h (optional) |
| Head | 20–30 meters |
| Motor power | 1.5–4 kW (varies by flow/head) |
| Voltage | 208/50Hz (three-phase) or customized |
| Material | SUS304 |
| Seal type | Mechanical seal |
| Connection type | Tri-clamp quick connectors |
| Control type | With start/stop buttons or VFD control |
| Working temperature | 0–95°C |
| Protection level | IP55 (customizable to IP65) |
| Noise level | ≤75 dB |
| Mobility | Four swivel caster wheels with brakes |
