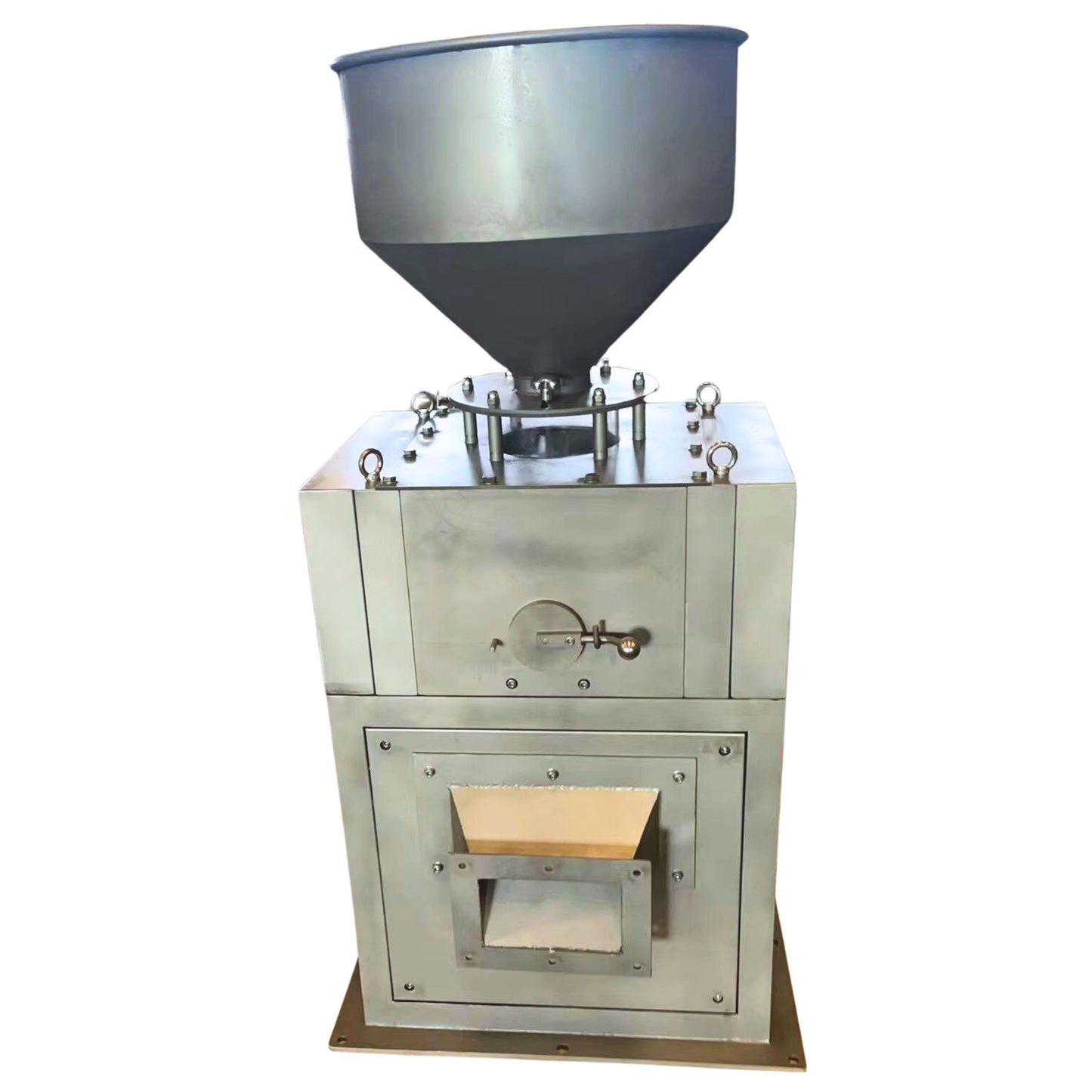

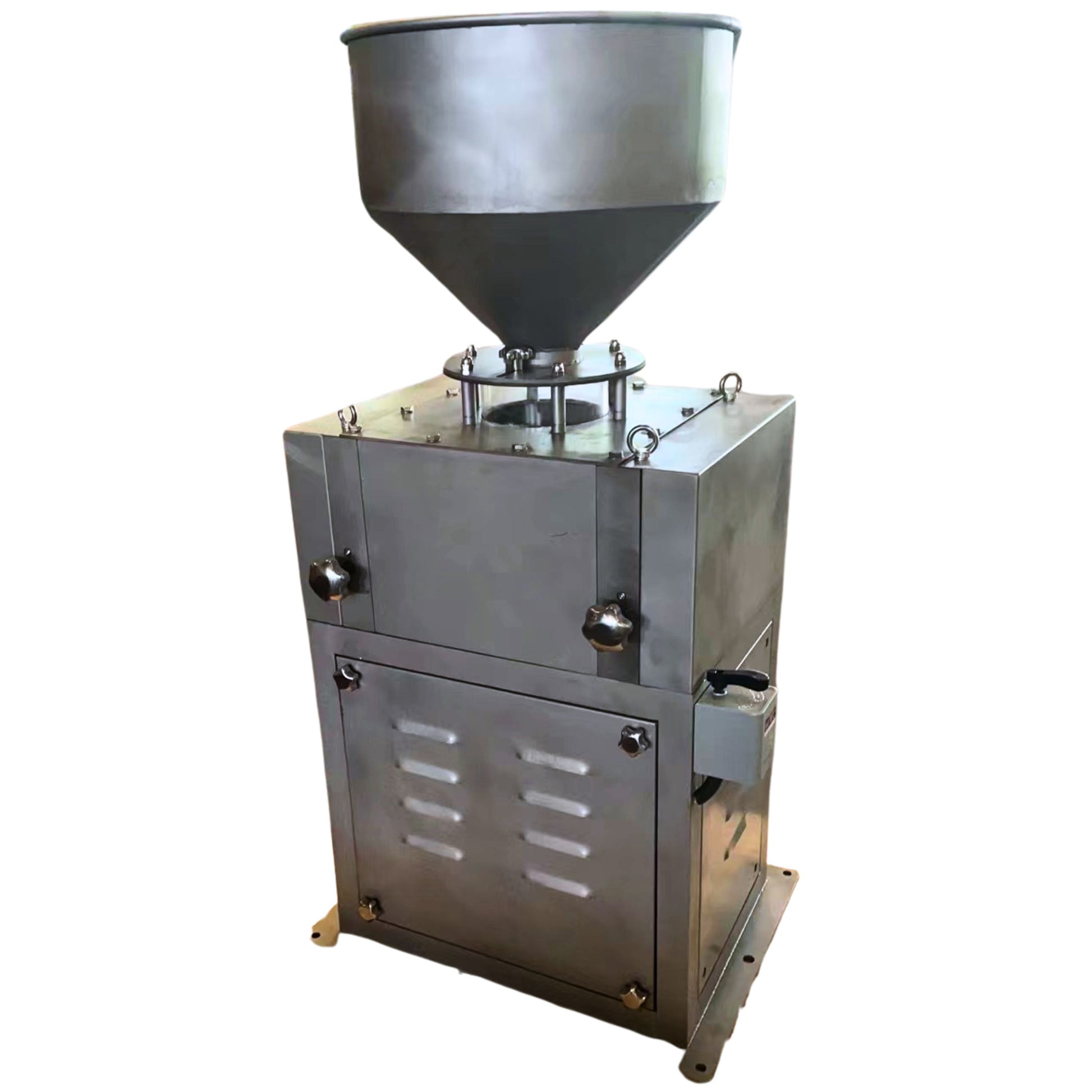

Overview
Key Features & Benefits
- Optimized Grain Entry & Easy Maintenance: Flat roll grinding surfaces allow smooth material flow into the crushing zone and make disassembly and cleaning straightforward.
- High-Efficiency Gear Transmission: Dual-speed gear-driven rollers ensure stable operation, high throughput, and reduced downtime with minimal noise output.
- Precision at High Speeds: Self-aligning ball bearings guarantee accurate concentric rotation, handling both high roller speeds and pressure with ease.
- Industrial-Grade Durability: Crafted with a hardened steel head and dynamically balanced alloy steel rollers for long service life and consistent performance.
- User-Friendly Adjustability: Fine rolling distance adjustments with an integrated locking handle provide exceptional control over crush size, simplifying operation.
- Durable & Safe: Stainless steel motor cover and optional control box with overload protection
- Reinforced Safety Design: Fully enclosed structure with outer protective casing enhances operator safety and overall system aesthetics.
- Flexible Feeding Options: Supports both manual and mechanical grain feeding, handling up to 2,205 lbs/h to meet varying production demands.
Technical
| Specification | Details |
|---|---|
| Capacity (Manual Feeding) | 1,102 lbs/h |
| Capacity (Mechanical Feeding) | 2,205 lbs/h |
| Roller Diameter | 3.86 inches (φ98 mm) |
| Roller Working Length | 13.78 inches (350 mm) |
| Motor Model | Y112M–6 |
| Motor Power | 2.95 HP (2.2 kW) |
| Motor Speed | 940 RPM |
| Dimensions (L × W × H) | 29.13" × 19.69" × 53.94" (740 mm × 500 mm × 1370 mm) |
| Weight | 584 lbs (265 kg) |
Manuals
coming soon
