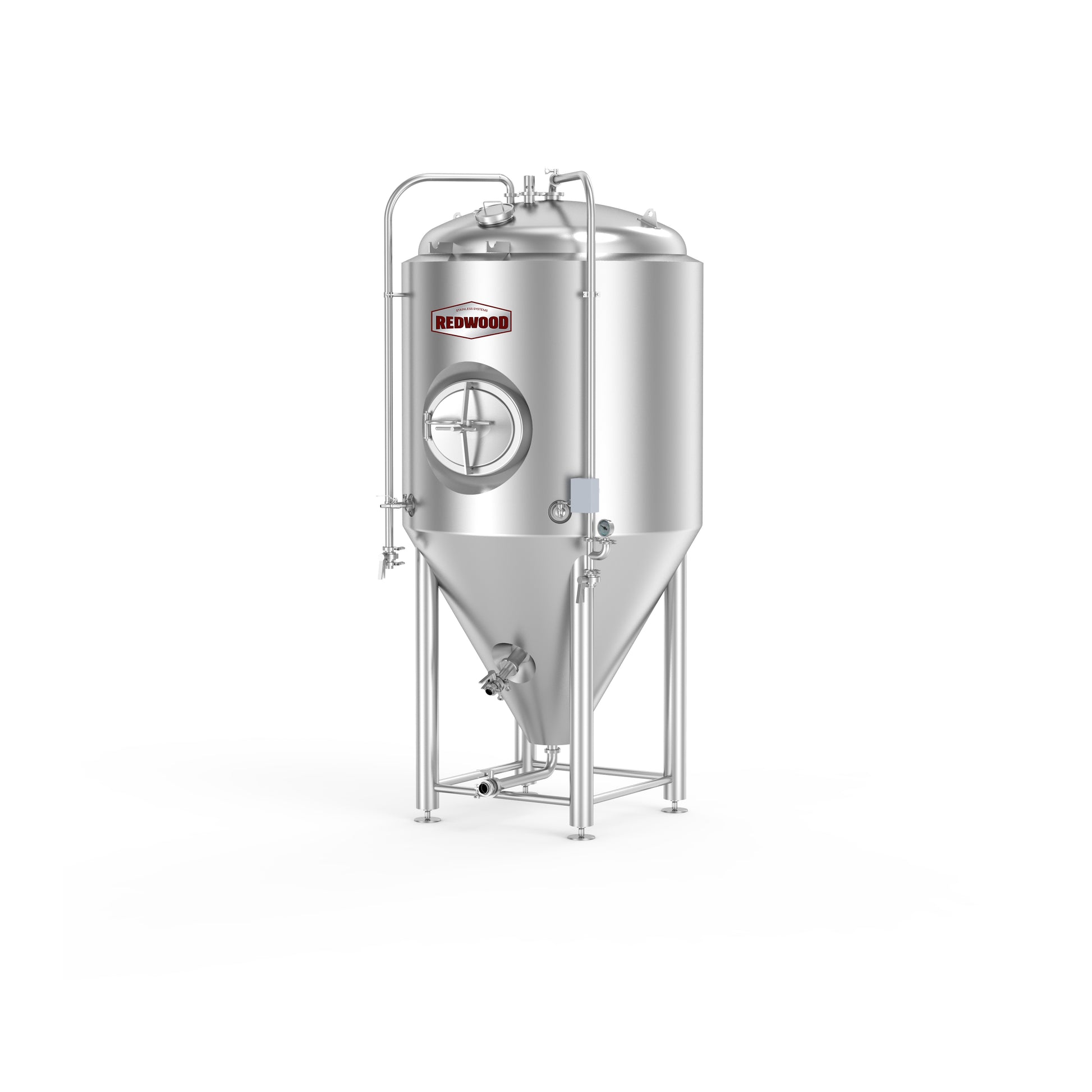

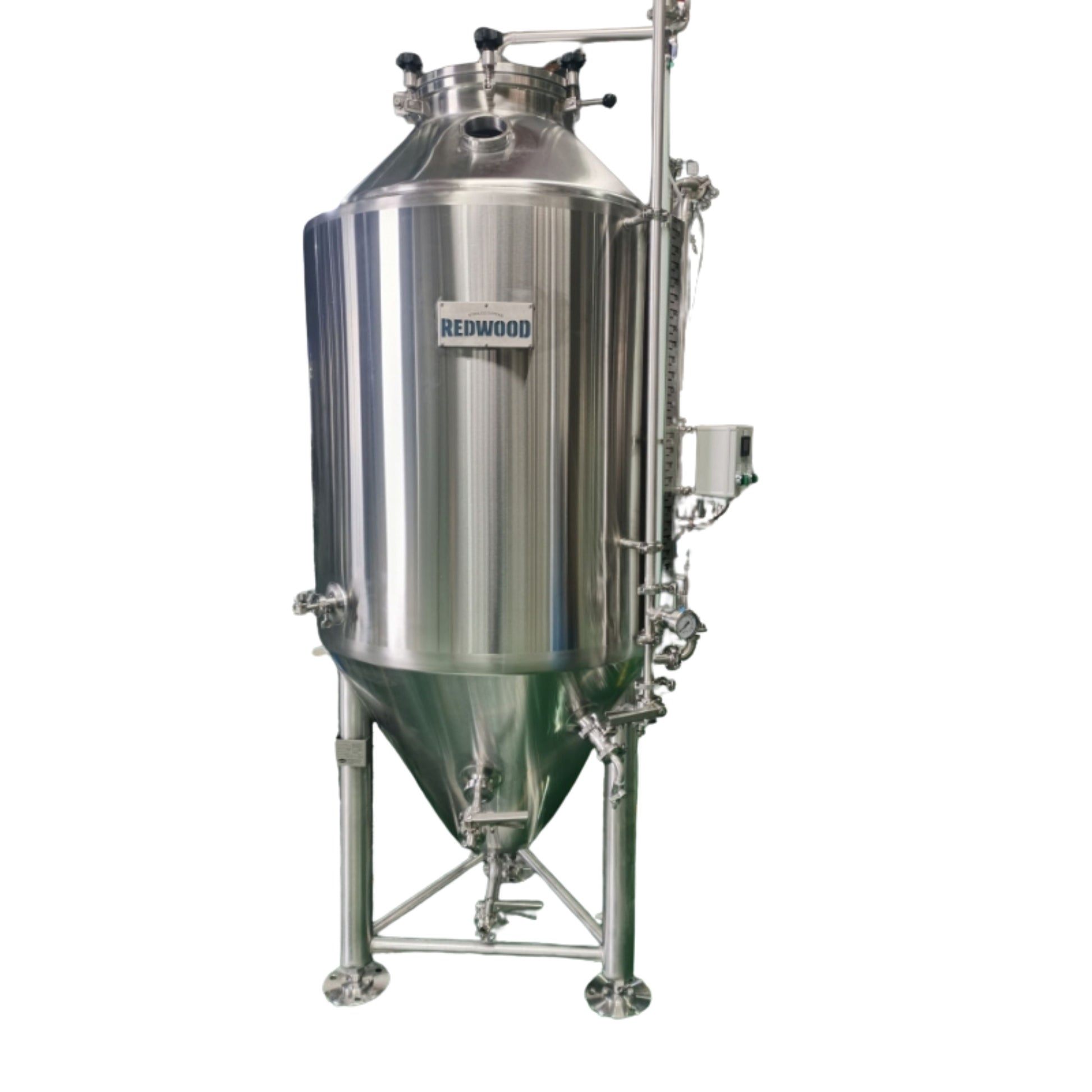

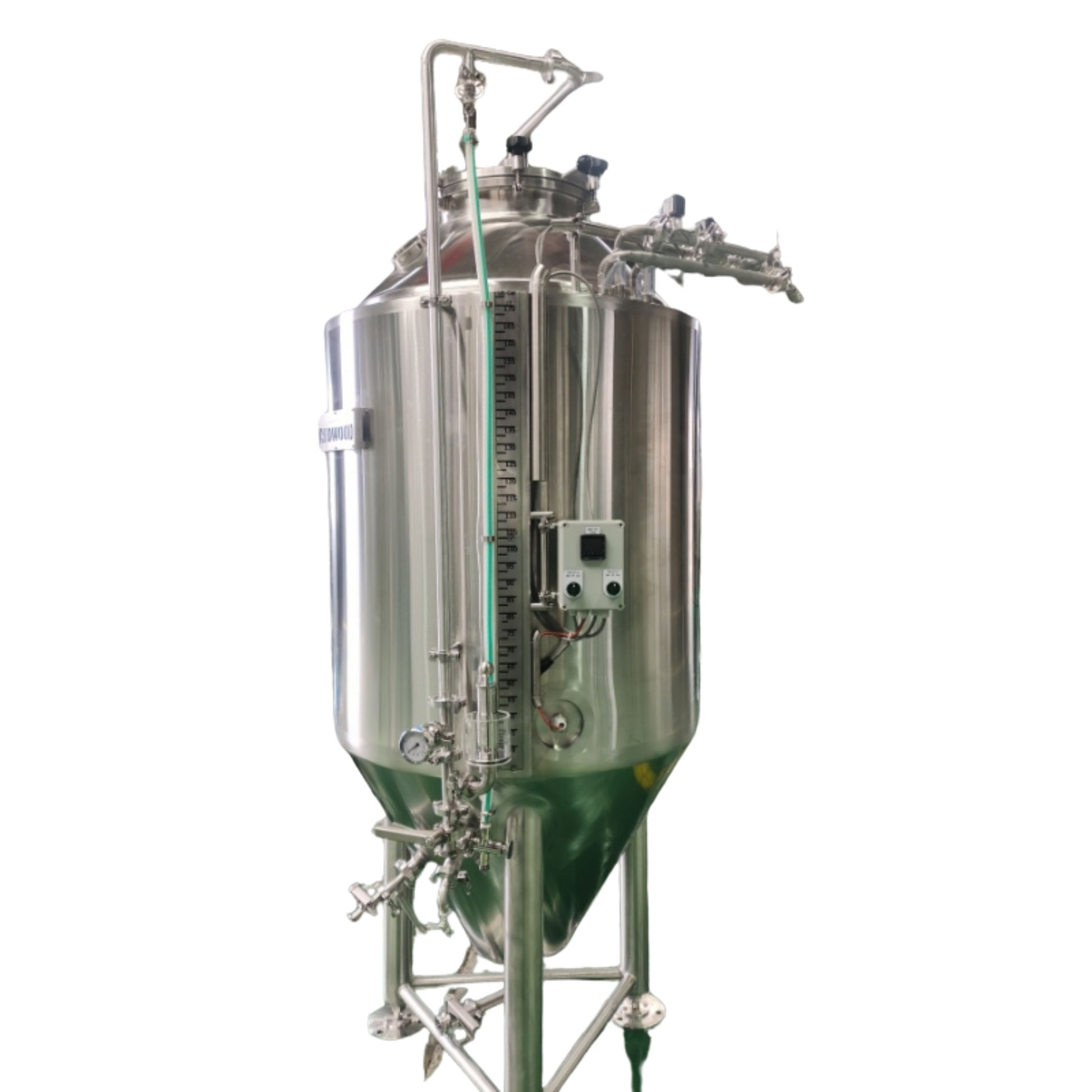

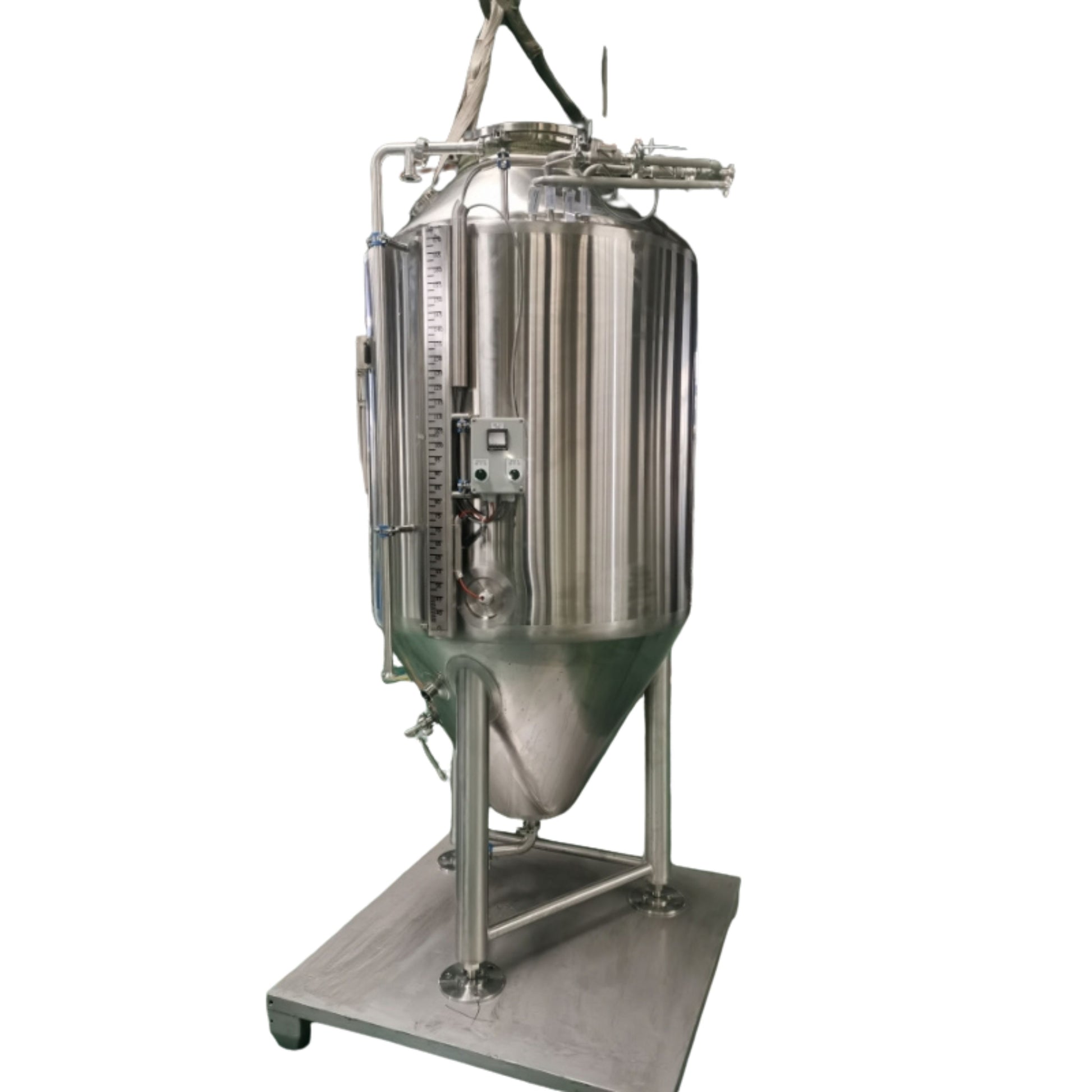

5 BBL Conical Fermentation Tank | Advanced Conical Fermenter with Custom Features

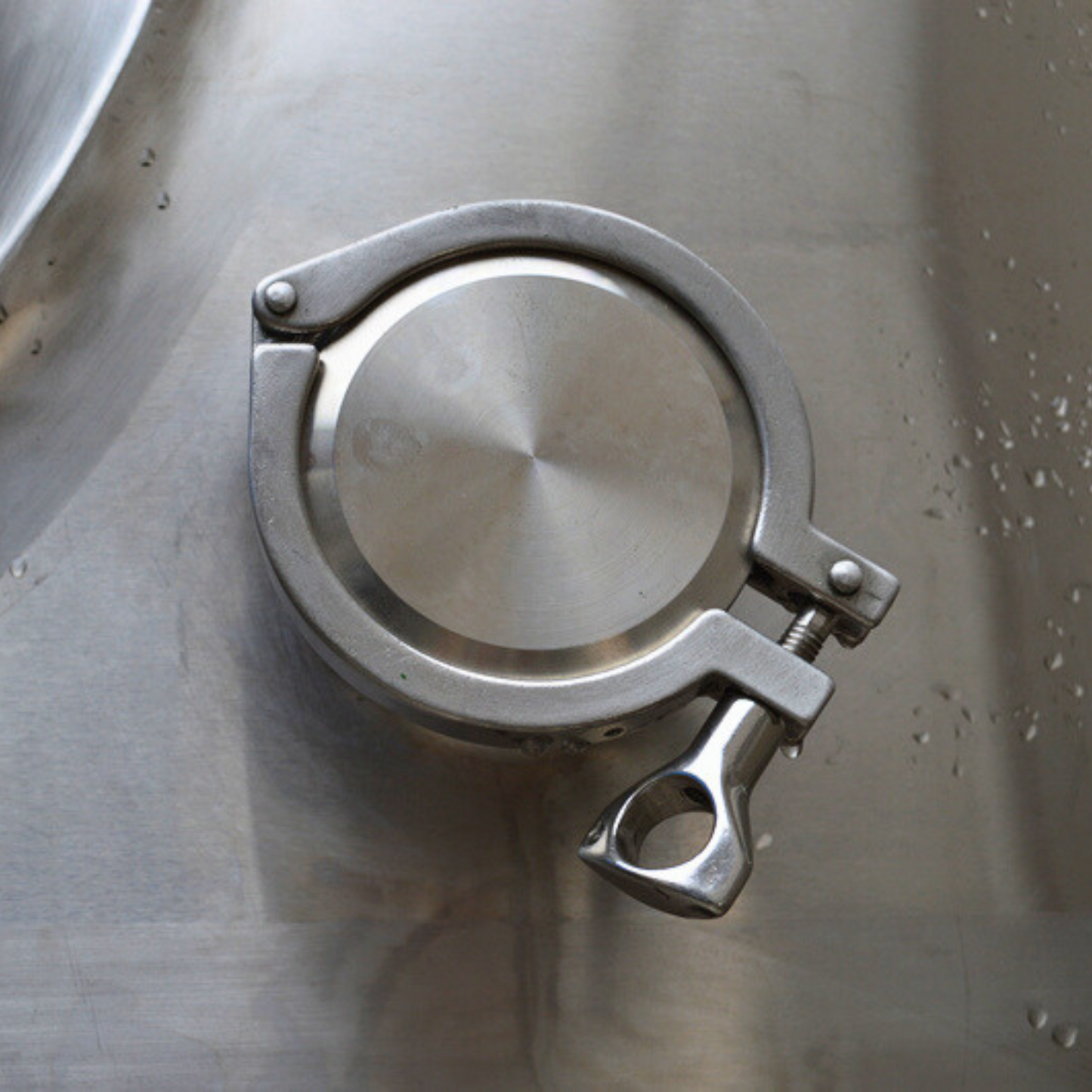

Versatile Tri-Clamp Connectivity: The CCT features a customizable 4” Tri-clamp port with optional sizes, ideal for various brewing processes, including a specialized blind cover designed for optimal hopping.
Robust Natural Carbonation System: Equipped with a German-engineered spunding device, this tank offers exceptional natural carbonating options, complemented by a 2” PVRV for reliable and safe pressure relief.

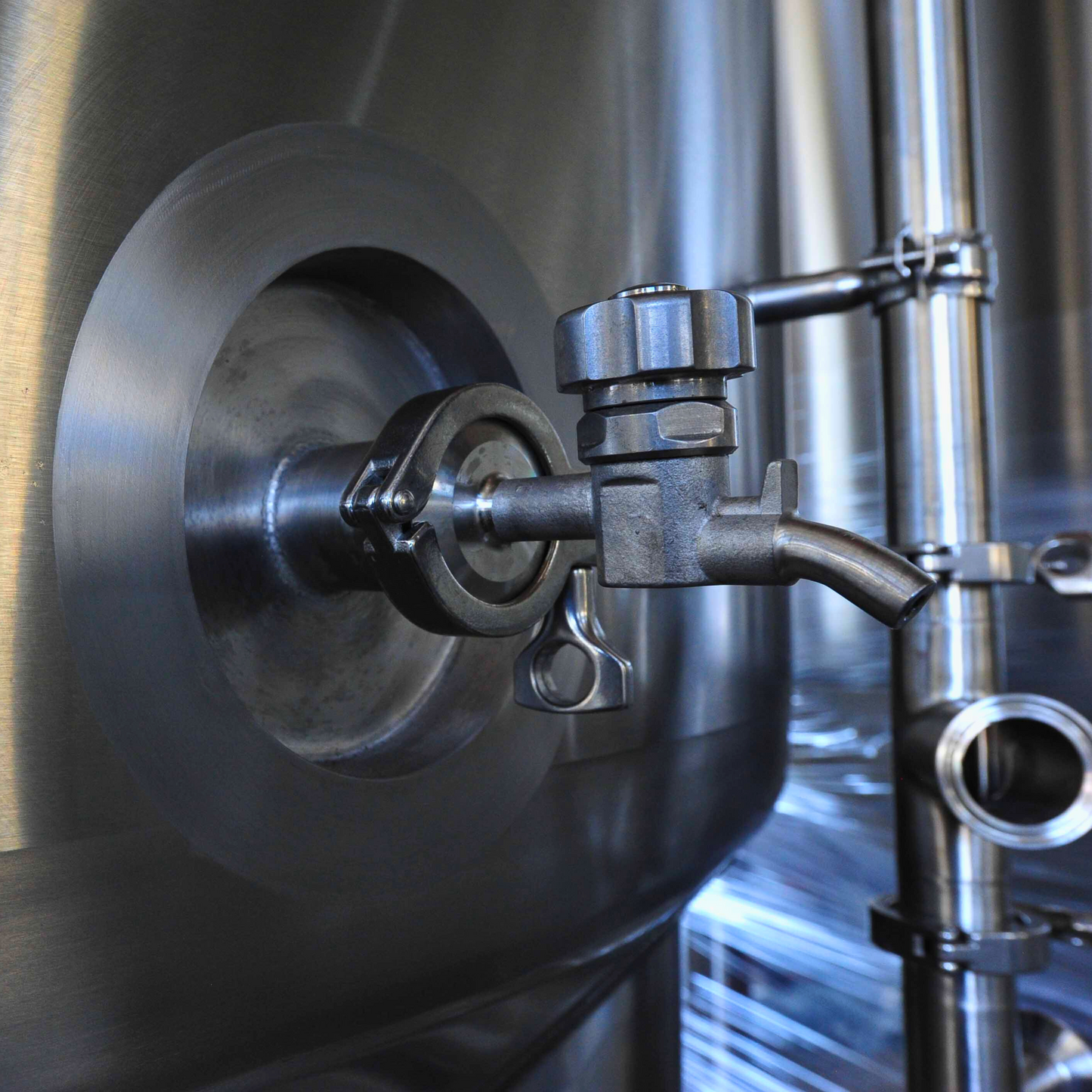

Precision Sampling and CO2 Monitoring: Incorporates a Perlick-style sample valve and a CO2 meter fixture with a 1” Tri-Clamp connection, ensuring precise and easy sampling for quality control.
Enhanced Cleaning Capabilities: Features a 4” TC hand hole and a customizable spraying ball, available in fixed or spinning configurations, for efficient and thorough cleaning.
Comprehensive Valve Integration: Outfitted with three 1.5” Tri-Clamp butterfly valves and a DIN65 port for the racking arm, providing versatile and reliable flow management.
Efficient CIP Cleaning Tube: The tank includes a Clean-in-Place (CIP) tube with a 300mm radius and a 90° bend, designed for comprehensive cleaning without compromising tank integrity.
Optional Blow-off Arm for Added Safety: Offers an optional blow-off arm in 1.5” or 2” sizes, equipped with a valve to enhance brewing safety and process control.
Additional Advanced Features: Comes with a pressure gauge, adjustable foot pads for stability, a silicon gasket for superior sealing, and an optional carbonating stone to enhance carbonation and brewing flexibility.

View full details

5 BBL Conical Fermentation Tank is designed for controlled fermentation in brewery, beverage, and stainless process environments. It gives production teams a practical way to improve consistency, support sanitary operation, and build a more reliable day-to-day workflow.

This vessel is suited for producers that need sanitary stainless equipment matched to their process, product type, and facility layout. It can support production workflows for beer, cider, kombucha, wine, RTD, coffee, tea, and other beverage categories depending on configuration.

Key Benefits:

• Sanitary stainless vessel design for fermentation workflow

• Supports beer, kombucha, wine, cider, and beverage production applications

• Custom features can be matched to process and facility needs

• Built for cleaning access, process control, and daily production use

• Useful for both growth-stage and established beverage producers

Q1: What is the 5 BBL Conical Fermentation Tank used for?

A: It is used for controlled fermentation and production workflow support for beer and other beverage products depending on the tank configuration.

Q2: What beverage producers can use this tank?

A: It can support breweries, cideries, kombucha producers, wineries, RTD producers, and other beverage facilities depending on process requirements.

Q3: Can the tank be customized?

A: Yes. Redwood can support custom features such as fittings, ports, cooling, access points, insulation, controls, and layout requirements depending on the project.

Q4: Why is sanitary stainless construction important?

A: Sanitary stainless construction supports cleaning, inspection, product quality, and repeatable production in beverage environments.

Q5: Can this vessel be paired with other Redwood equipment?

A: Yes. It can be planned with brewhouses, bright tanks, mixing tanks, CIP systems, kegging, and canning equipment.
