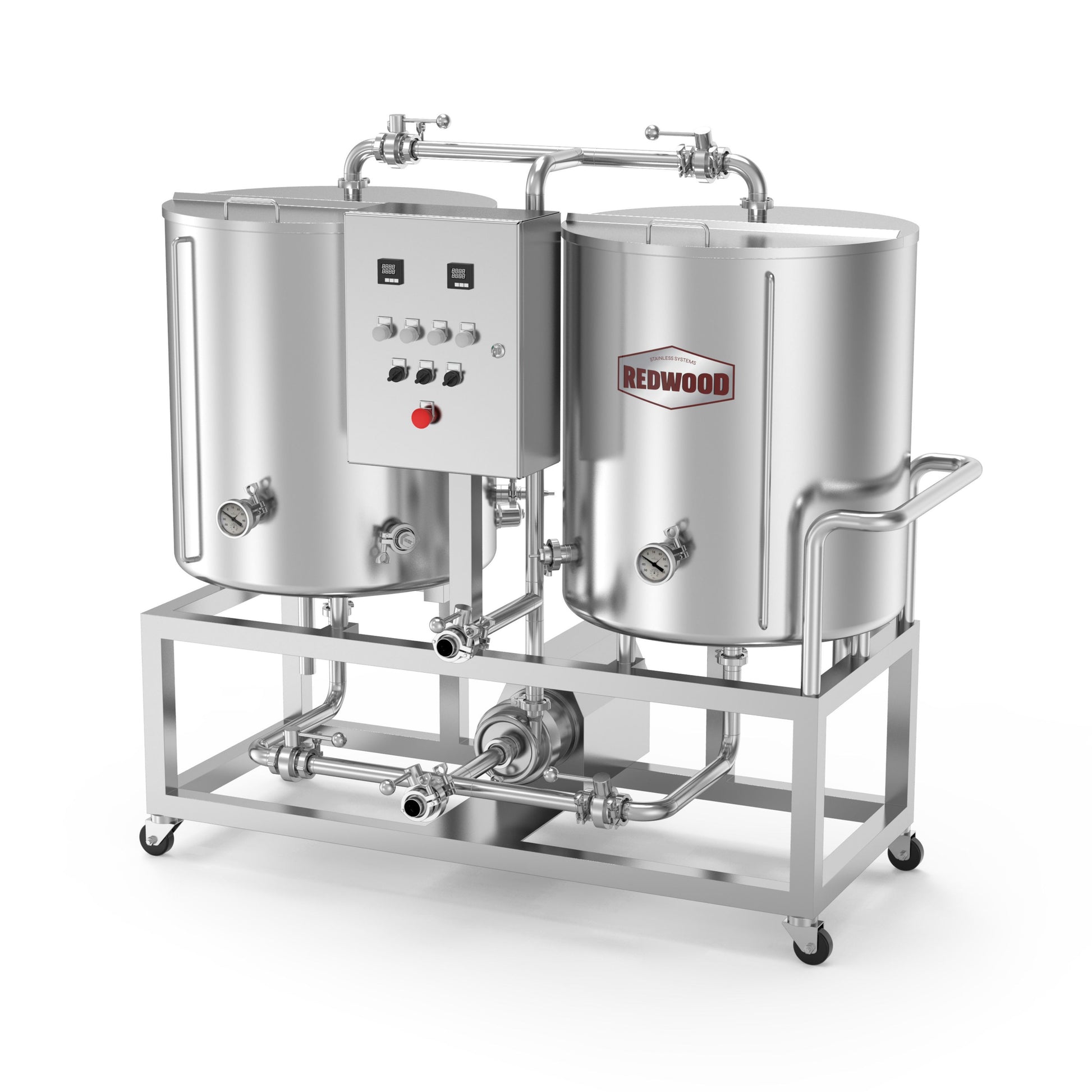

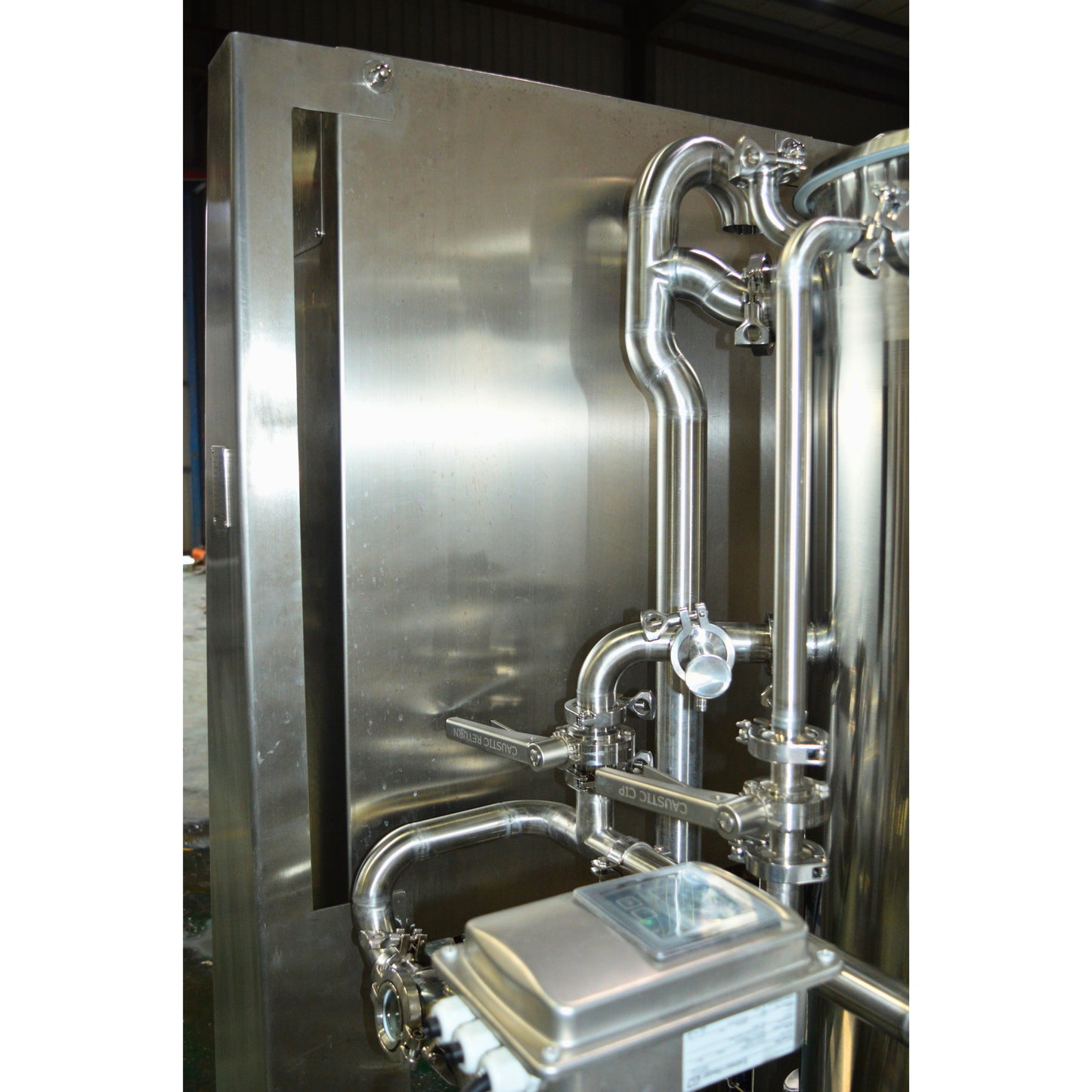

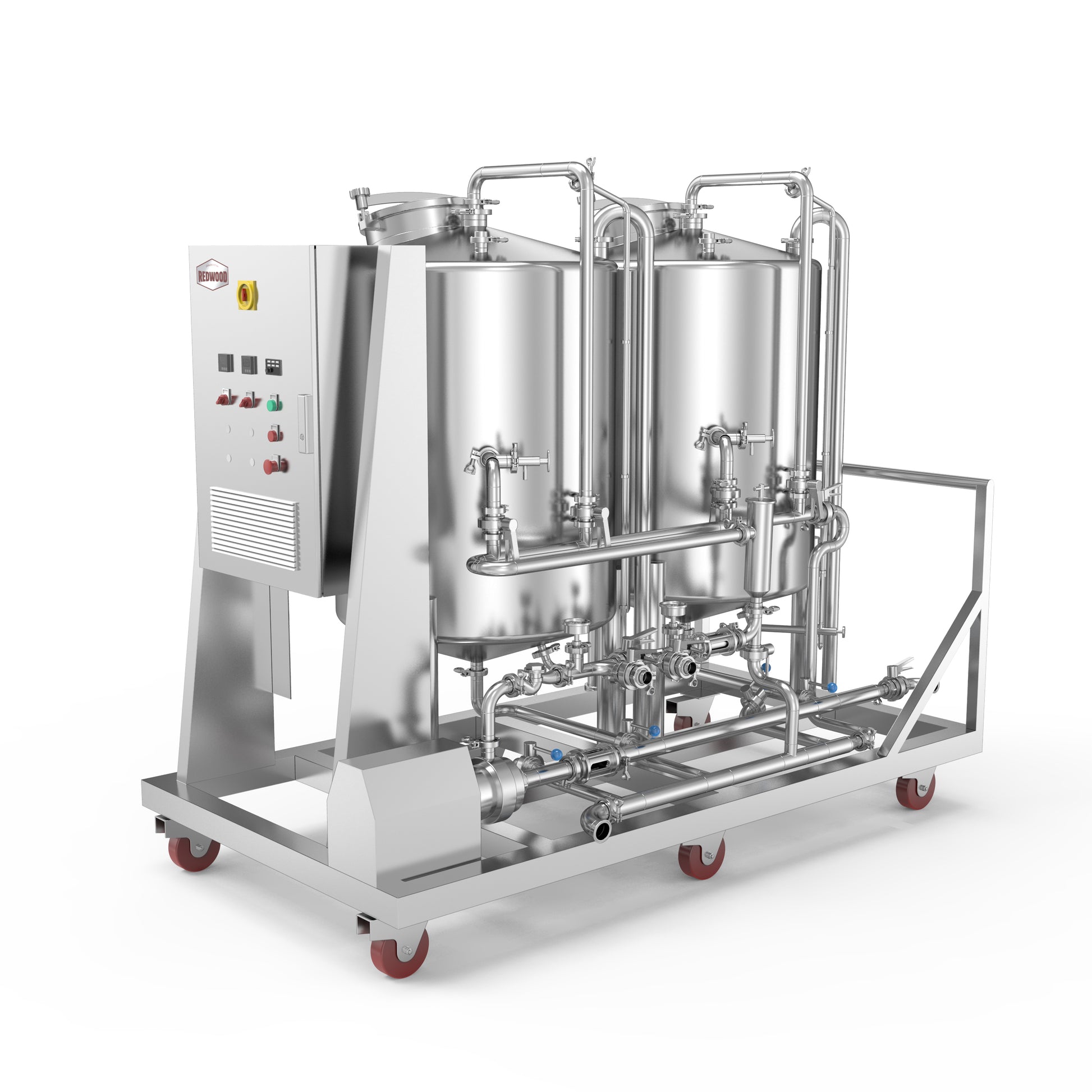

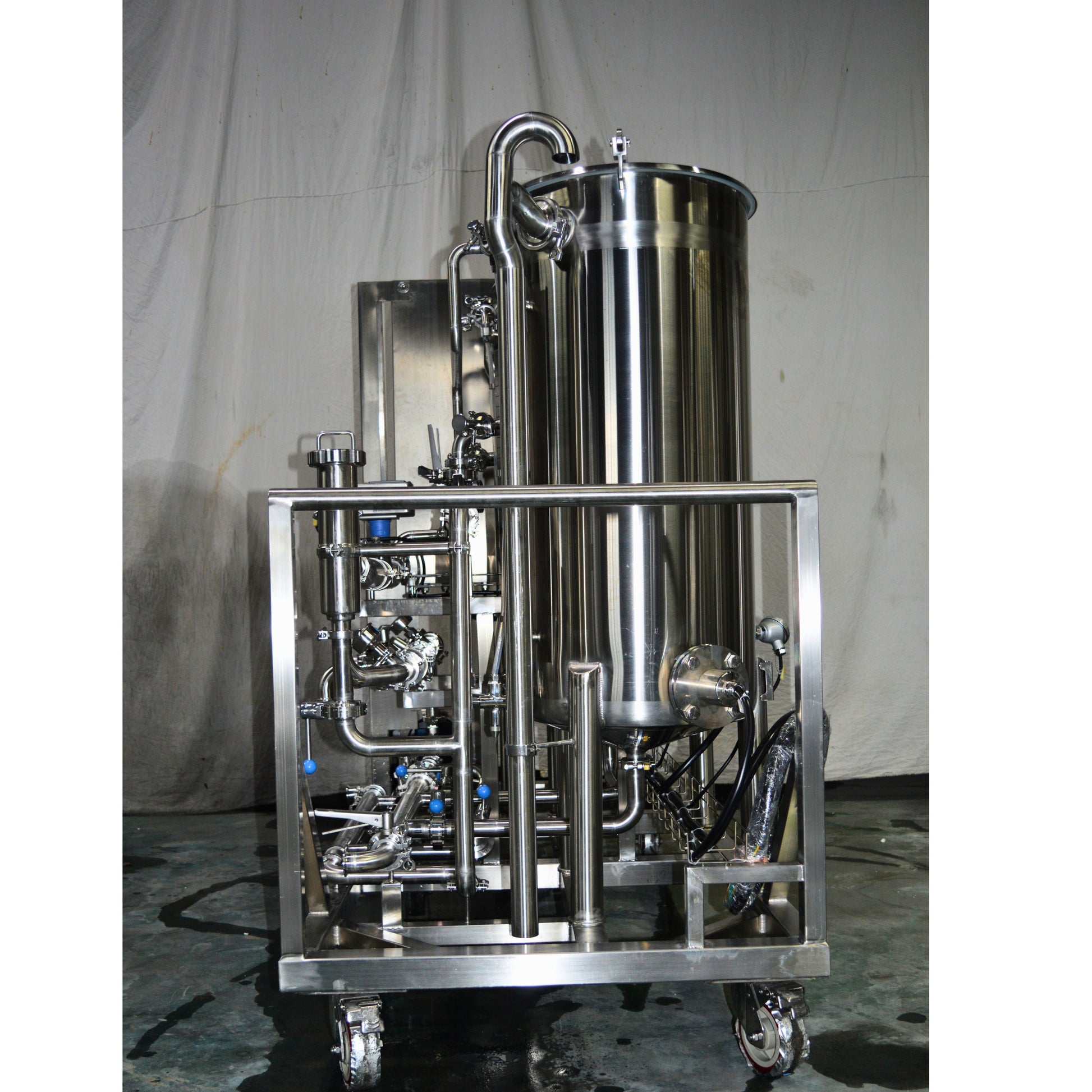

150L Electric Heating Portable CIP Trolley – Dual-Tank Cleaning System

Q1. Is a portable CIP system right for my facility?

A: A portable CIP system is a practical choice for breweries, beverage plants, wineries, distilleries, dairies, and other sanitary processing facilities that need flexible cleaning capability without installing a dedicated fixed CIP skid. One portable unit can serve multiple production areas, making it especially suitable for small and medium-sized facilities.

Q2. What equipment can a portable CIP system clean?

A: The Redwood Portable CIP System can clean compatible sanitary process and packaging equipment, including brewhouses, fermentation tanks, bright beer tanks, mixing tanks, heat exchangers, process piping, product transfer lines, bottle filling lines, and can filling lines.

Final compatibility depends on the equipment design, piping layout, required flow rate, cleaning chemistry, and CIP connection arrangement.

Q3. Can one portable CIP unit clean multiple tanks and production lines?

A: Yes. The system can be moved between compatible tanks, process vessels, piping circuits, and packaging lines. This allows one portable CIP unit to support several cleaning applications, provided each circuit is properly designed for the required flow, temperature, pressure, and return conditions.

Q4. Why does the portable CIP system have separate acid and caustic tanks?

A: Separate tanks allow acid and caustic solutions to be prepared, stored, and circulated independently. This supports multi-stage CIP procedures, reduces the risk of mixing cleaning chemicals, and allows facilities to manage different cleaning cycles more efficiently.

Q5. Does the system heat and recirculate the cleaning solution?

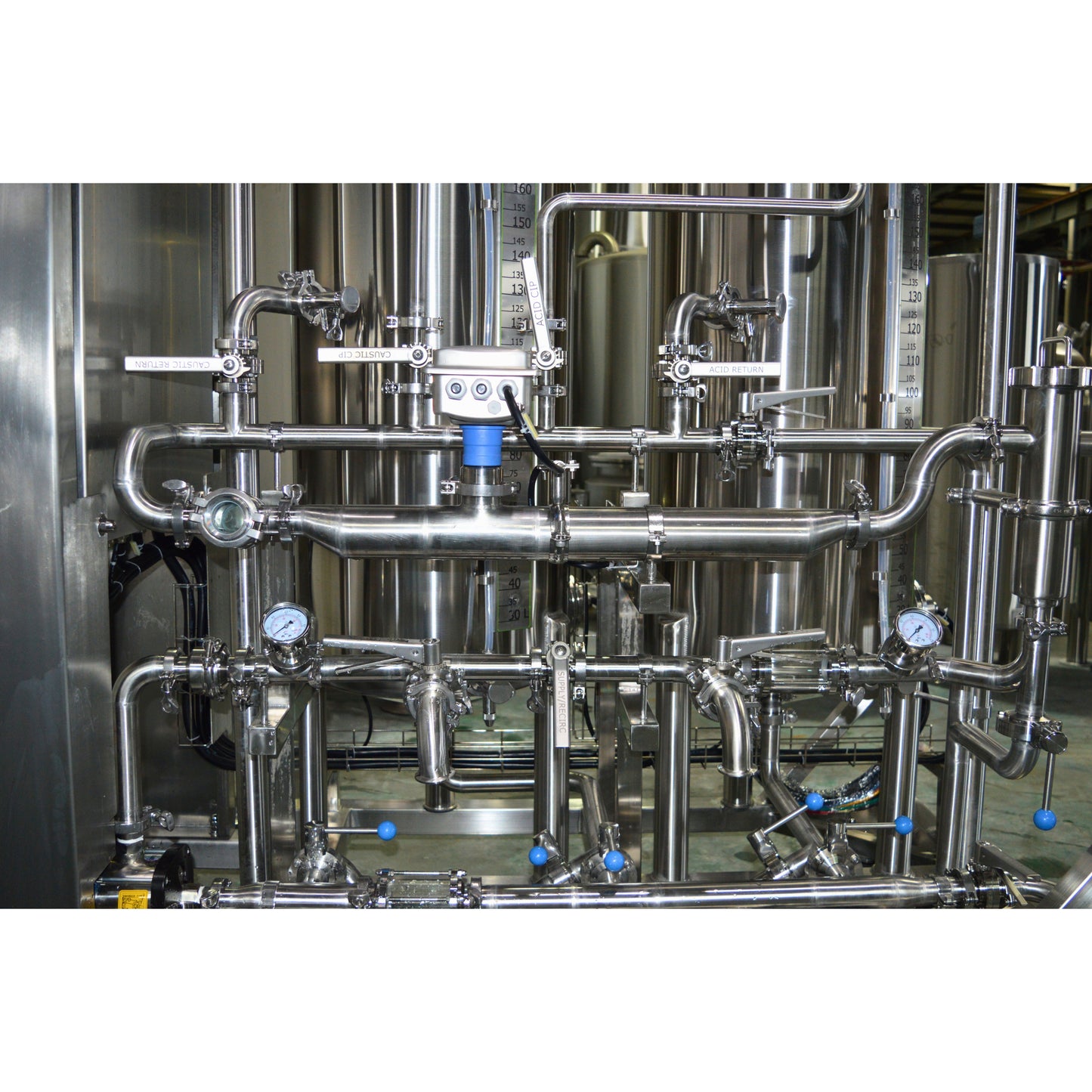

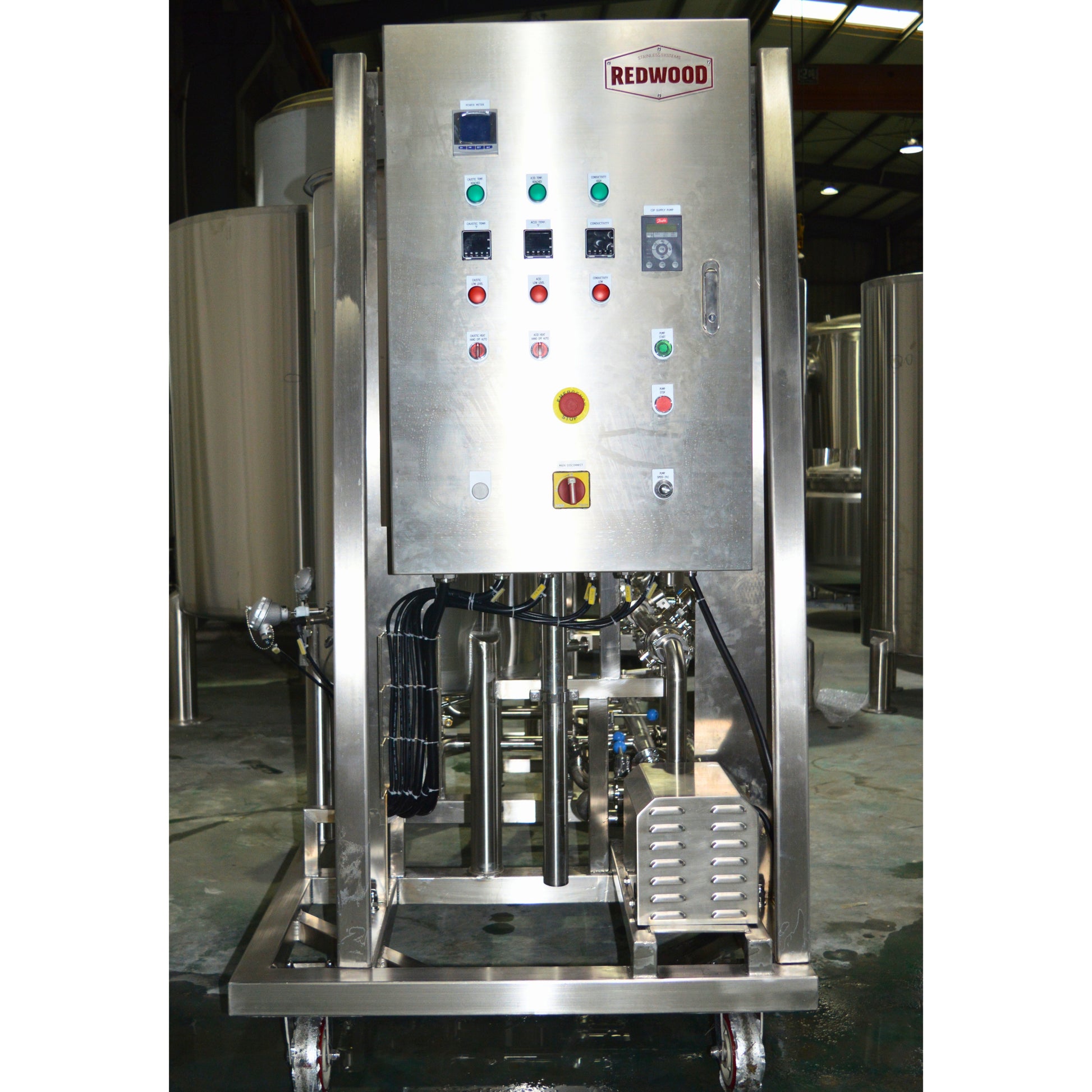

A: Yes. Each tank includes electric heating and automatic temperature control. A sanitary centrifugal CIP pump circulates the cleaning solution through the connected equipment and returns it to the selected tank. A return filter helps capture particles before the solution is recirculated.

Q6. What safety and monitoring features are available?

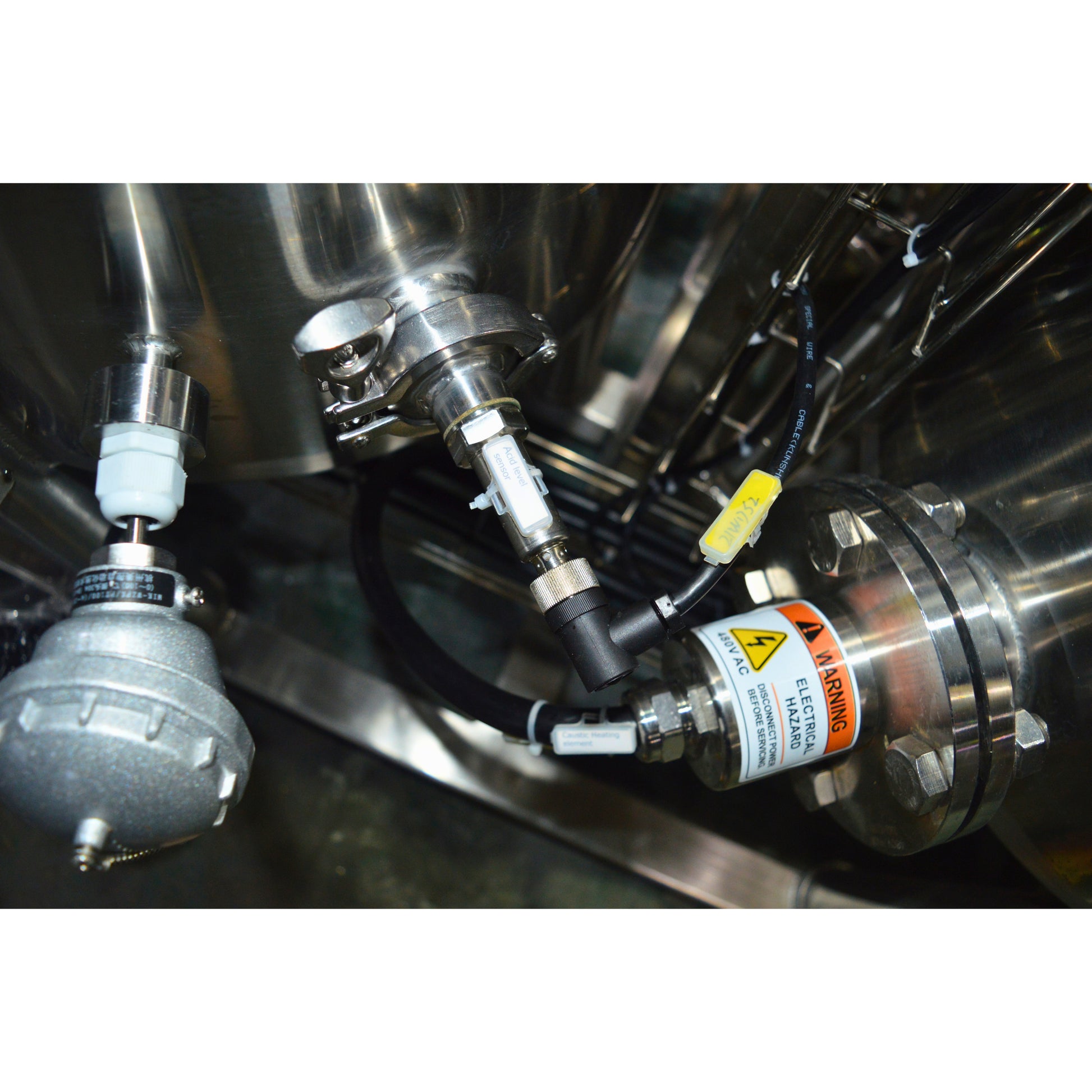

A: Each tank includes low-level protection that disables the electric heater when the liquid falls below the minimum operating level, helping prevent dry heating and protect the heating elements. Optional conductivity monitoring is available for applications that require verification of cleaning-solution concentration.

Q7. What portable CIP tank sizes are available?

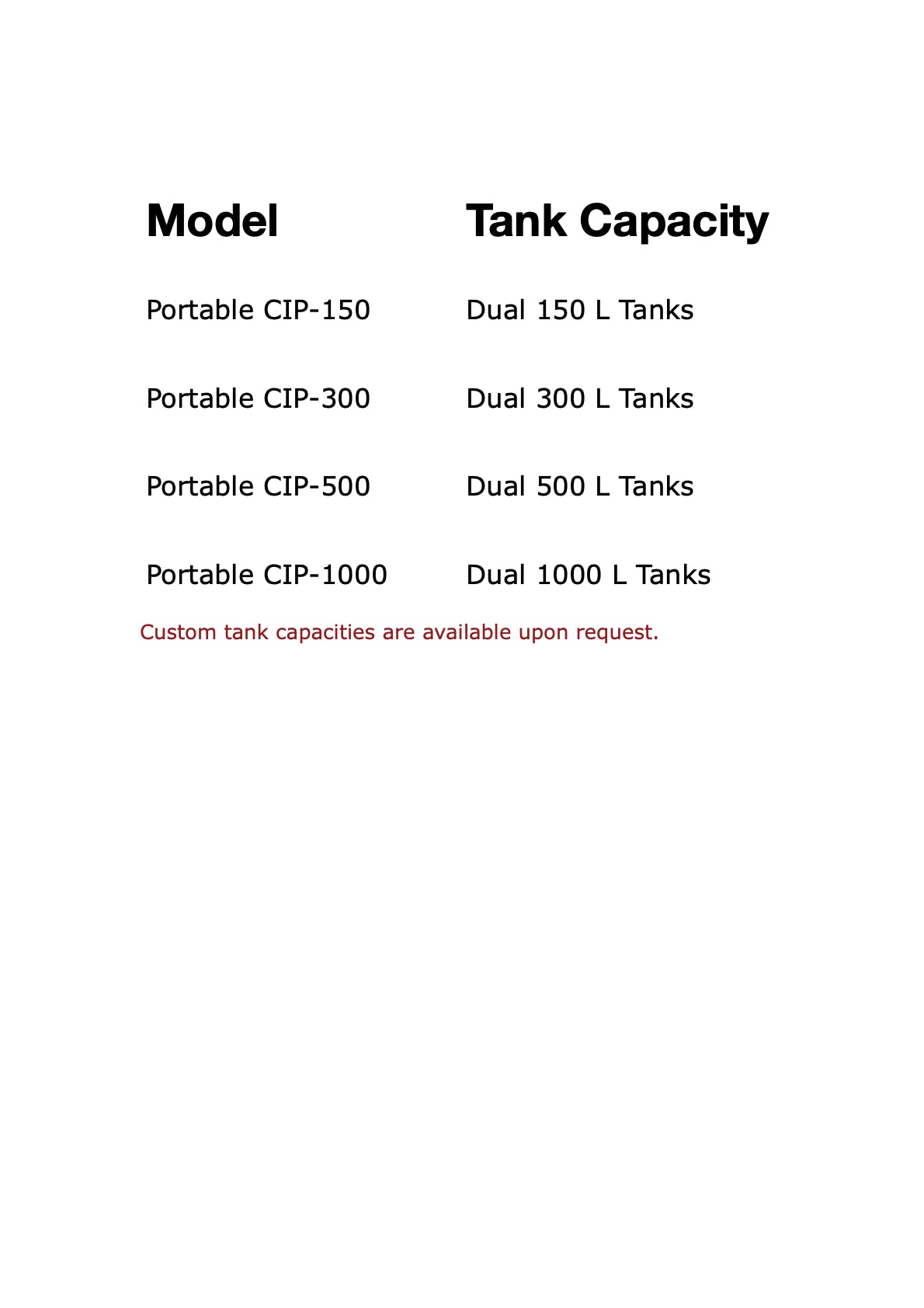

A: Standard Redwood Portable CIP System configurations include:

•
  Dual 150 L tanks

•
  Dual 300 L tanks

•
  Dual 500 L tanks

•
  Dual 1,000 L tanks


Custom tank capacities and system configurations are also available based on the facility’s cleaning requirements.

Q8. What utilities are required for a portable CIP system?

A: Typical utility requirements include electrical power, water supply, drainage, and compressed air. Exact requirements depend on tank capacity, heater size, pump configuration, controls, and the equipment being cleaned. Refer to the technical specifications or request a utility review before installation.

Q9. How does a portable CIP system compare with a fixed CIP skid?

A: A portable CIP system offers greater flexibility and can be shared between multiple tanks or production areas, potentially reducing the initial equipment investment. A fixed CIP skid may be more suitable for larger facilities with frequent cleaning cycles, dedicated circuits, higher automation requirements, or simultaneous cleaning demands. Redwood can help evaluate which CIP configuration fits your production workflow and expansion plans.
