Overview
For the innovative brewer with a distinctive beer concept, a nano brewery serves as an ideal platform to gauge market reception. The minimal capital investment required to establish a nano brewery makes it an accessible entry point into the brewing industry.
Technical
- 1 x 4" Tri-clamp (optional bigger size or DIN threaded union cover) port with blind cover mounted on the top as hopping port
- Optional German style bunging device
- Top 2" PVRV of 2 Bars, 30PSI relief
- 1 perlick style sample valve with fixture for fixing CO2 Meter, 1" Tri-Clamp
- 1 x 4" TC hand hole for mounting spraying ball from outside of the tank

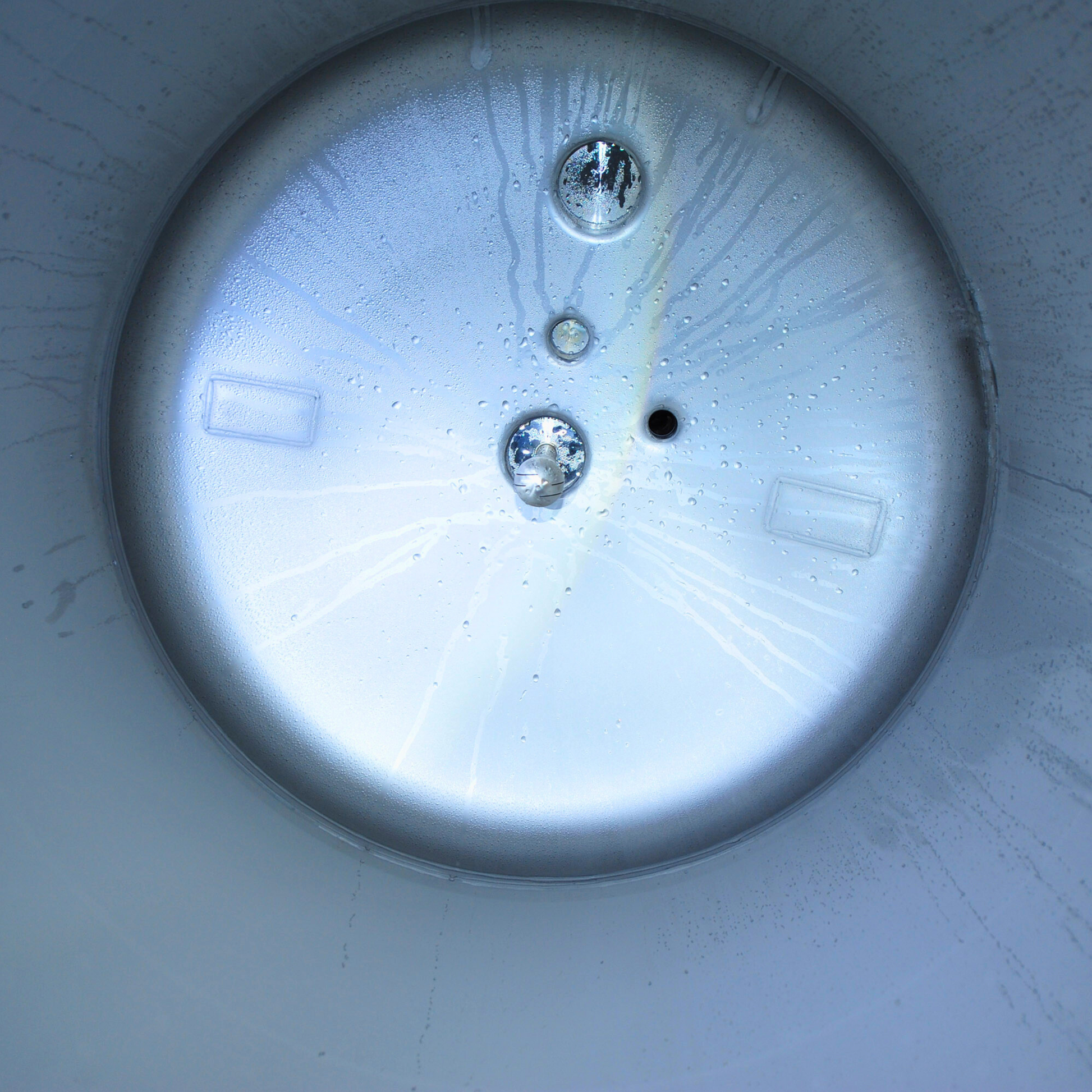

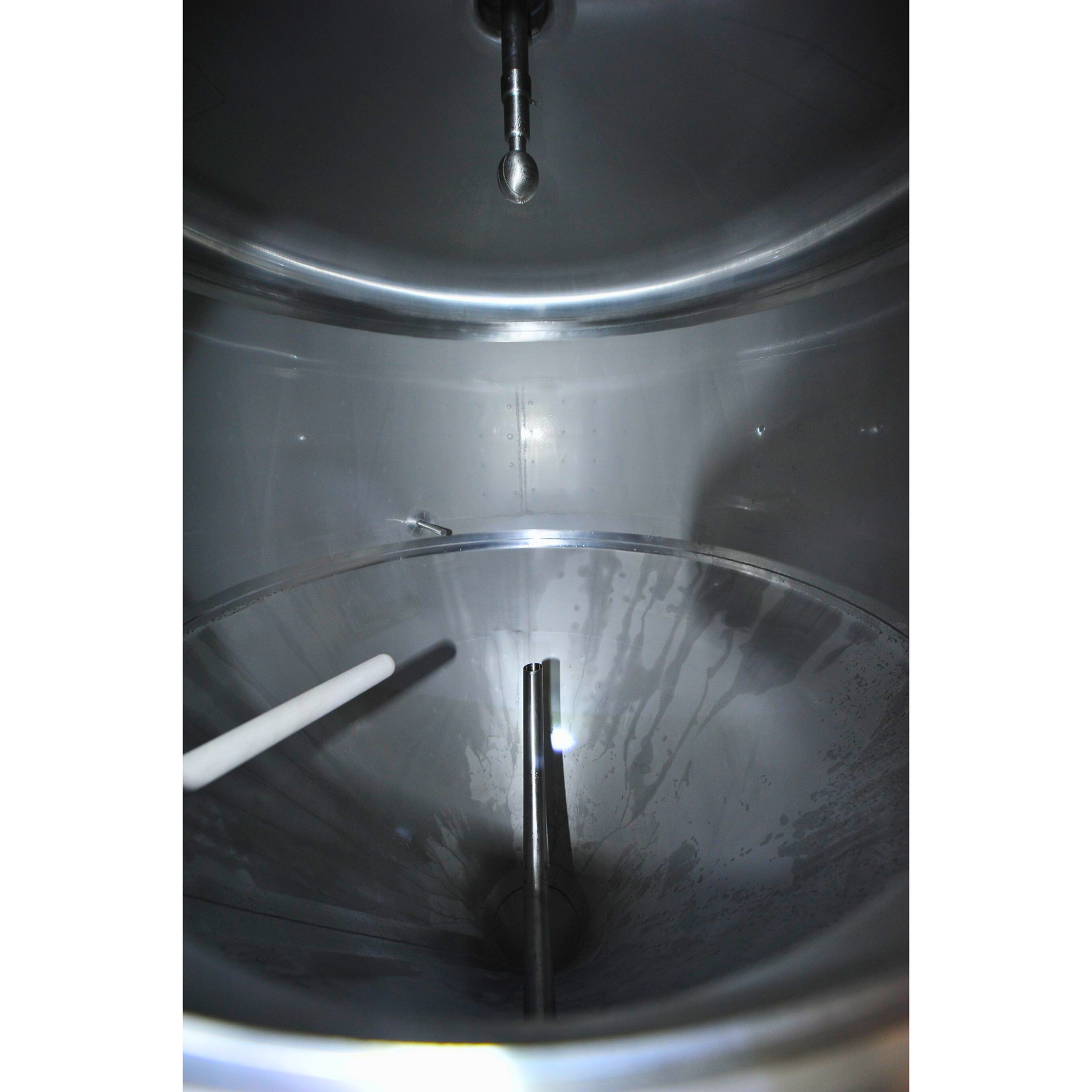

- 1 Spraying ball (optional fixed or spinning versions) of threaded or pin connection, 1", cleaning both interior head and body
- 2 x 1.5“ Tri-Clamp manual butterfly valves on the bottom port and CIP port
- CIP down tube of Radius 300mm 90° bend
- Optional separate 1.5" or 2" blow off arm with butterfly valve
- All tri-clamp connection

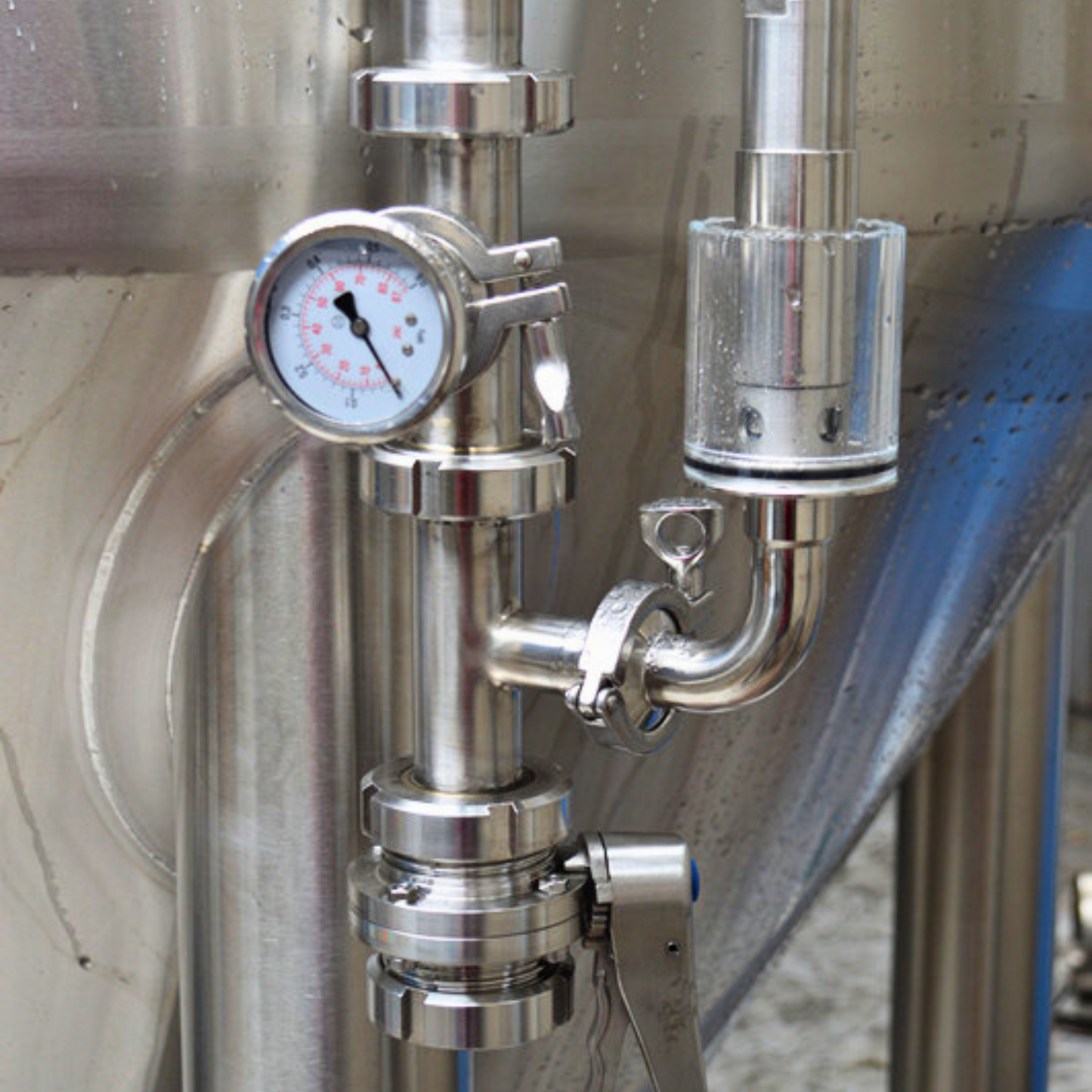

- 1 pressure gauge
- Height adjust foot pads, optional ball socket and holes for anchoring bolts for breweries in seismically active areas
- Gasket: silicon rubber
- optional Carbonating stone device mounted on the cone bottom
Manuals
coming soon
