Overview
The Isobaric Canning Master 8-2 uses counter-pressure filling, ensuring the maximum displacement of oxygen in cans. This will achieve the lowest possible TPOs, 20bbp, as well as maximize your products shelf life and flavor stability. By matching the pressure inside the can with the absolute pressure of the gas in the storage tank, the canning process can be achieved quickly and efficiently while allowing for more tolerance to elevated volumes of carbonation and varying temperatures
Technical
- Customization: Tailored to meet your specific production needs.
- Precision Level Gauge Filling: Delivers exact volumes of product
- Maintenance-Free Volume Seal Mechanism: Designed for longevity and reliability.

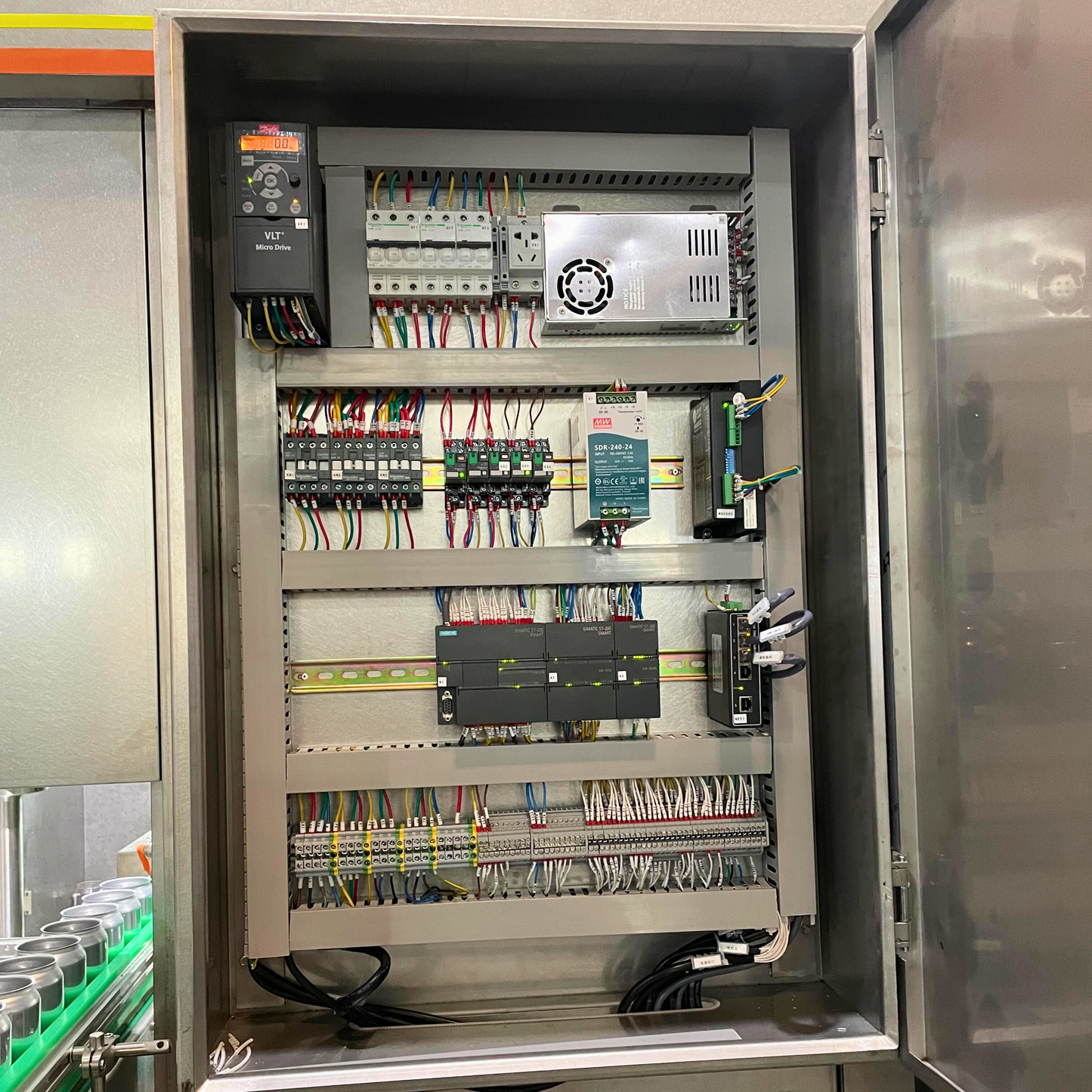

- Imported PLC Control: User-friendly interface for seamless operation.
- Sealing Accuracy: Provides a secure and consistent seal to maintain quality.
- Automatic lid dropping System: Reduces labor costs and simplifies the canning process.
- Touch Screen: Intuitive German interface for easy adjustments.
- Pneumatic Components: Reliable international brand elements for smooth operations.
- Motor: Premium Italian engineering for unmatched performance.
- CIP Cleaning Procedures: Advanced cleaning protocols for maximum sanitary operations
- Capacity: 2000 cans per hour (CPH).
- Maximum Sealing Speed: 33 cans per minute (CPM), adaptable to various can sizes.
- Conveyor Belt Height: 1000 mm ± 50 mm for ergonomic operation.
- Motor Power: variable frequency motor rated at 3 kW.
- Noise Level: ≤ 85 dB for a comfortable working environment.
- Coiling Thickness: 1.10-1.20 mm for robust can construction.
- Inlet and Outlet Direction of conveyor: 180 degrees
- Dimensions: Length: 2400mm,Width: 1500mm,Height: 2400mm
Manuals
coming soon
Reviews
coming soon
