• Redwood branded stainless steel bright beer tank with high-efficiency polyurethane foam insulation, featuring sanitary construction with a polished interior for optimal cleanliness. Includes high-quality TIG welded pipes, certified valves, and fittings. Customizable according to specifications, designed for rigorous use with a 120% overhead space and separate glycol jackets for precision temperature control.
  • Redwood branded stainless steel bright beer tank with high-efficiency polyurethane foam insulation, featuring sanitary construction with a polished interior for optimal cleanliness. Includes high-quality TIG welded pipes, certified valves, and fittings. Customizable according to specifications, designed for rigorous use with a 120% overhead space and separate glycol jackets for precision temperature control.
1 2

Redwood Stainless Systems

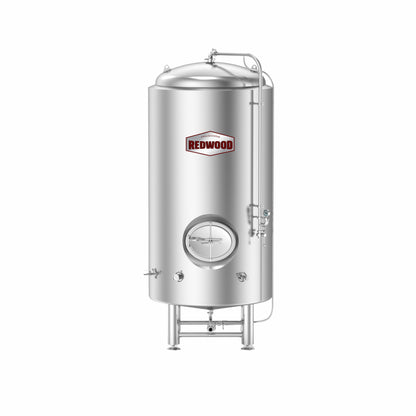

20bbl BBT

20bbl BBT

Certified Stainless Steel material

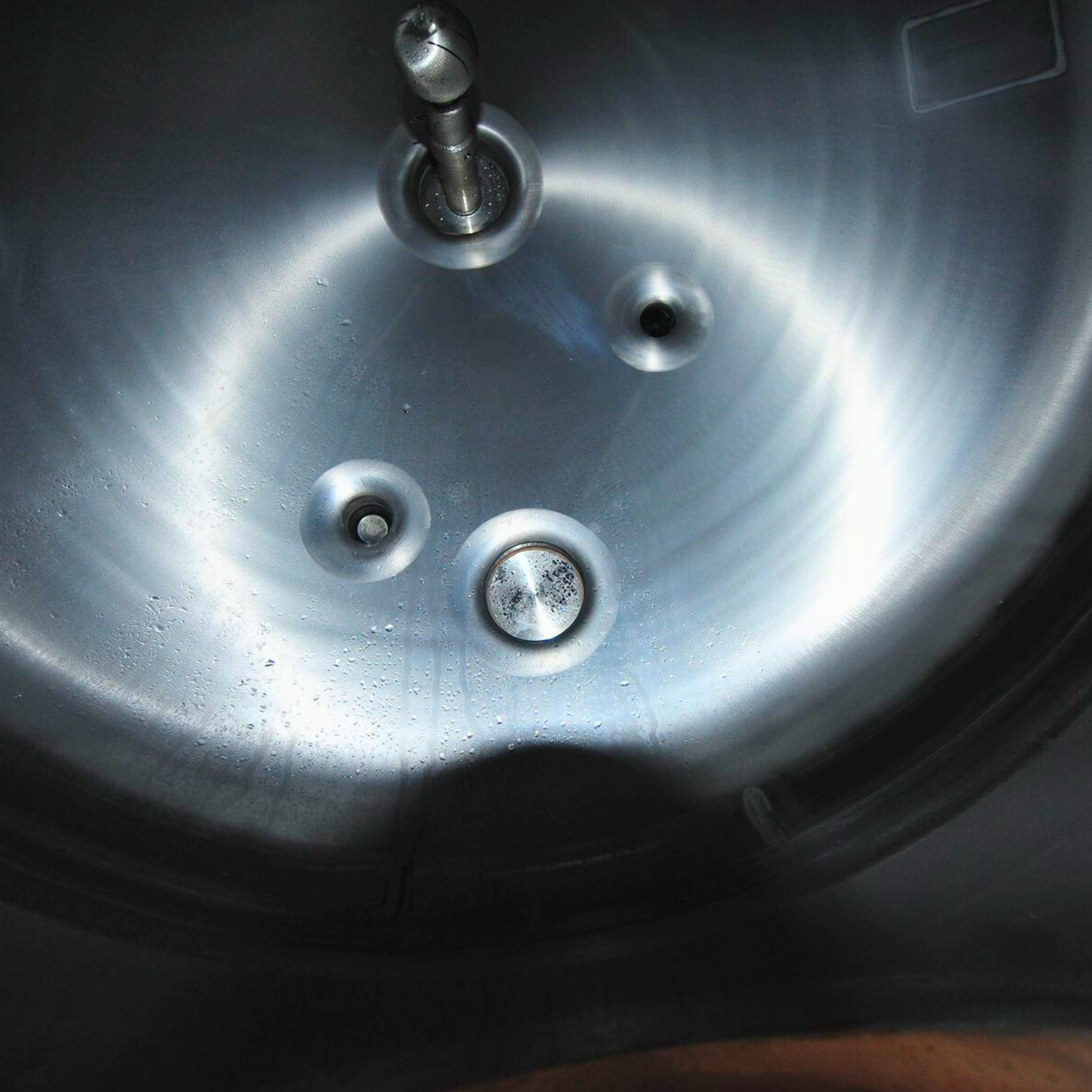

Sanitary construction seams with sanitary interior polish
Inspected and pressure tested to 2 times operating pressure
Insulated with high efficiency polyurethane foam
Name-brand, high-quality valves and fittings included with every tank
Quality TIG welding: For piping, quality TIG welding with sanitary interior shapes with 40 years experience
120% overhead space, heat insulated; separate glycol jackets on body; dished top head and bottom; Side man-way:450mmx350mm
Tanks can be customized according to your specifications

Customers rate us 0.0/5 based on 0 reviews.
View full details
  • Overview
  • Technical
  • Manuals
  • Reviews

Overview

For the innovative brewer with a distinctive beer concept, a nano brewery serves as an ideal platform to gauge market reception. The minimal capital investment required to establish a nano brewery makes it an accessible entry point into the brewing industry.

Technical

  • 1 x 4" Tri-clamp (optional bigger size or DIN threaded union cover) port with blind cover mounted on the top as hopping port
  • Optional German style bunging device
  • Top 2" PVRV of 2 Bars, 30PSI relief
  • 1 perlick style sample valve with fixture for fixing CO2 Meter, 1" Tri-Clamp
  • 1 x 4" TC hand hole for mounting spraying ball from outside of the tank
  • 1 Spraying ball (optional fixed or spinning versions) of threaded or pin connection, 1", cleaning both interior head and body
  • 2 x 1.5“ Tri-Clamp manual butterfly valves on the bottom port and CIP port
  • CIP down tube of Radius 300mm 90° bend
  • Optional separate 1.5" or 2" blow off arm with butterfly valve
  • All tri-clamp connection
  • 1 pressure gauge
  • Height adjust foot pads, optional ball socket and holes for anchoring bolts for breweries in seismically active areas
  • Gasket: silicon rubber
  • optional Carbonating stone device mounted on the cone bottom
